Clayton, a leading single-family home builder, recently made big environmental news by deciding to convert nearly all of the 42,000 modern manufactured homes it builds annually to be certified ENERGY STAR and Zero Energy Ready Homes (ZEHR). These certifications mean that their manufactured homes will be much more efficient, save homeowners money on their utility bills (up to 50%) and provide premium energy-efficient appliances that are often considered unaffordable to the average family.
Clayton’s switch to ZERH also means nearly all of their homes now come with a heat pump water heater which likely represents the single largest procurement of HPWHs in the history of the technology. To put it in context, the entire HPWH market in 2022 shipped 141,000 units and Clayton alone will increase this total by 30%!
Reasons Clayton Made This Move
Clayton’s decision to switch to heat pump water heaters is a success story for the Inflation Reduction Act (IRA). The IRA increased the tax credit home builders receive for both ENERGY STAR rated homes (from $1,000 to $2,500) and Zero Energy Ready Homes (ZEHR) (from $2,000 to $5,000). Heat pump water heaters proved to be one of the key technologies that helped Clayton qualify for the full ZEHR tax credit. Ron Powell, president of manufacturing for Clayton Home Building Group, said, “Based on how we built ENERGY STAR 2.0 homes, one of the easiest ways to meet 3.0 standards was to swap the traditional dual element water heater for a heat pump water heater and add a heat pump for electric homes. But once we committed to the heat pumps, the conversation then turned to, ‘Why don’t we go all the way by building DOE Zero Energy Ready Homes?’”

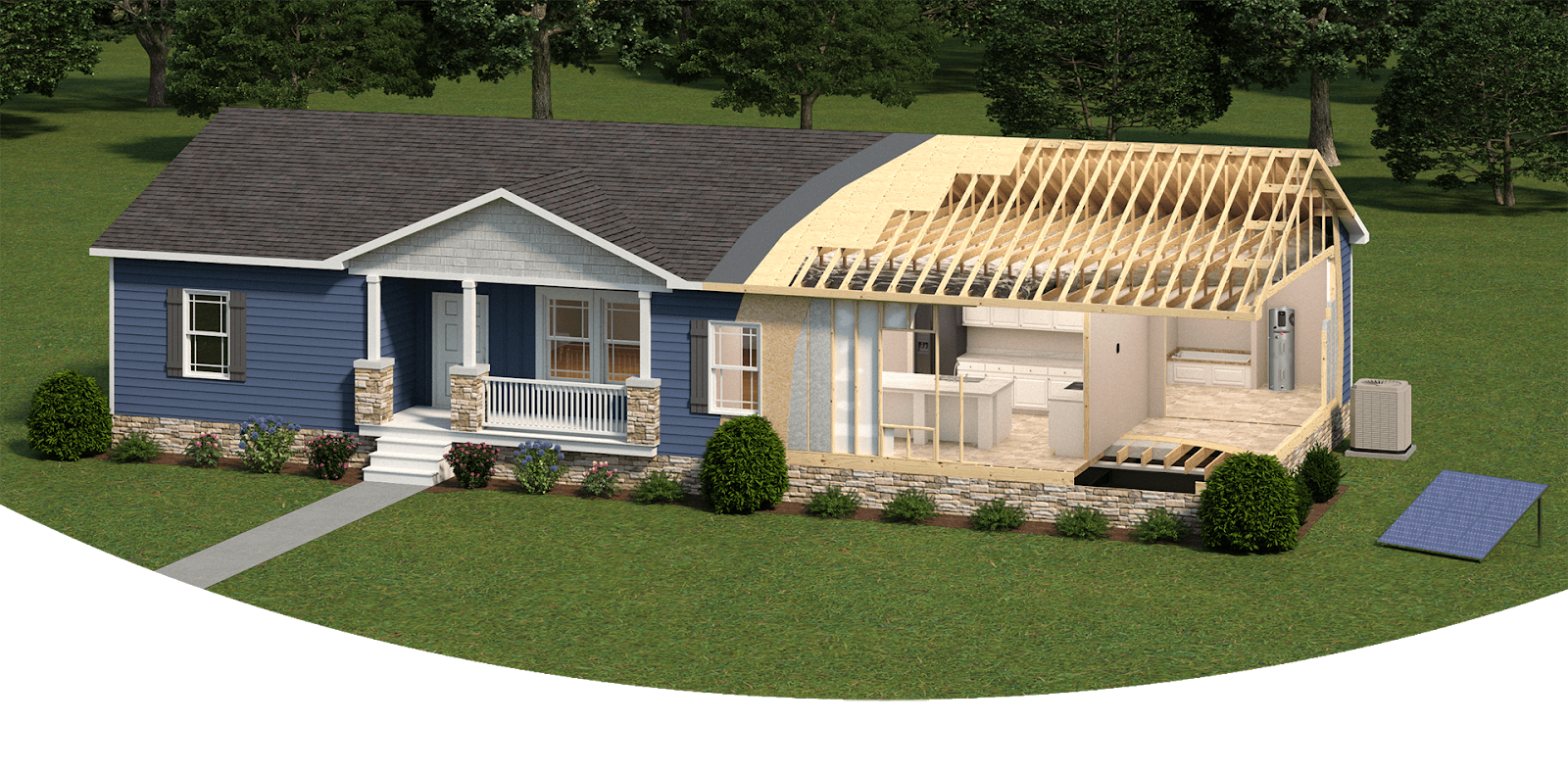

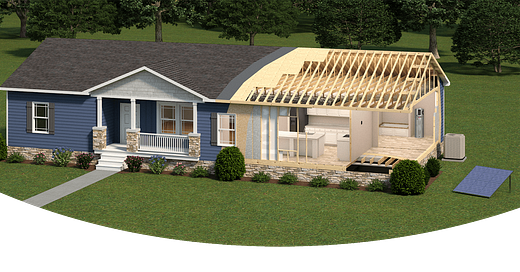

Clayton is calling their new Zero Energy Ready home eBuilt®. They had 39 of their 40 home building facilities certified to produce to this standard by May 2023, and today 96% of all new Clayton home orders are eBuilt®. The homes feature LED lighting, smart thermostats, low-e windows with argon gas, insulated doors and thermal envelope, additional insulation, a heat pump water heater and many of the homes have a heat pump for space conditioning as well. Thanks to the IRA tax credits, Clayton was able to offer a total of 25 efficiency features without raising their prices to the end consumer.
36,000 eBuilt homes have already been manufactured and in the first 6 months of production, Clayton built more ZEHR certified homes than all the other ZEHR certified homes built by other home builders since 2013.
A Heat Pump Water Heater Success Story
Clayton made a couple changes when adding HPWHs to all their homes. First, they redesigned their home floor plans for the heat pump water heater, creating a utility closet that contains the heat pump air handler. This helps keep the noise produced by the water heater fans (usually around 45 dB like a quiet dishwasher) from bothering anyone. Clayton also ships the water heater with nylon straps instead of metal, which reduces vibration if the straps aren’t removed once the water heater is installed.

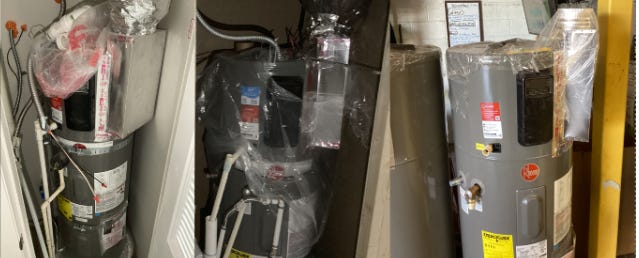

The switch to HPWHs hasn’t been entirely without challenges. Clayton has gone to significant lengths to protect the HPWH while the home is being built (see images below), but some installers I’ve talked to are finding problems with the HPWH ducting after the home has been commissioned and are having to provide repairs. Other industry insiders are questioning Clayton’s decision to duct just the HPWH exhaust as it may create negative pressure within the home. Clayton reports that it has since changed the way heat pump water heaters are vented to eliminate the negative pressure risk.
But overall, Clayton is receiving very positive feedback from the tens of thousands of new eBuilt homeowners. They heard from one longtime Clayton home owner who switched to a new eBuilt home and said that their energy bill had gone from $250 a month in the winter to $75. The lower energy bills that come with these Zero Energy Ready certified homes tackle the issue of the “hidden mortgage,” where monthly ownership costs, like energy bills, can be almost as much as the mortgage itself. “Energy costs rose 14% in 2022 – double the cost of inflation - and 20 million families currently struggle to pay their power bill,” said William Jenkins, Clayton Home Building Group’s senior director of environment and sustainability.
Clayton’s historic move to heat pump water heaters and other energy-efficient features in their eBuilt home is a win-win-win. Homeowners benefit from lower utility bills, the environment benefits from drastically lowered emissions, and the company benefits from good press and smart tax credits. Kudos to Clayton for making this big move towards an energy-efficient, low-cost future.
Watch a video of Clayton Homes presenting on their move to HPWHs to the Advanced Water Heating Initiative here.
For more info and to sign up for AWHI working groups go to https://www.advancedwaterheatinginitiative.org/
